Description
Model TyreON TSC700 met klem
Lifting capacity 700 kg
Lifting height 120 cm
Minimum height 16 cm

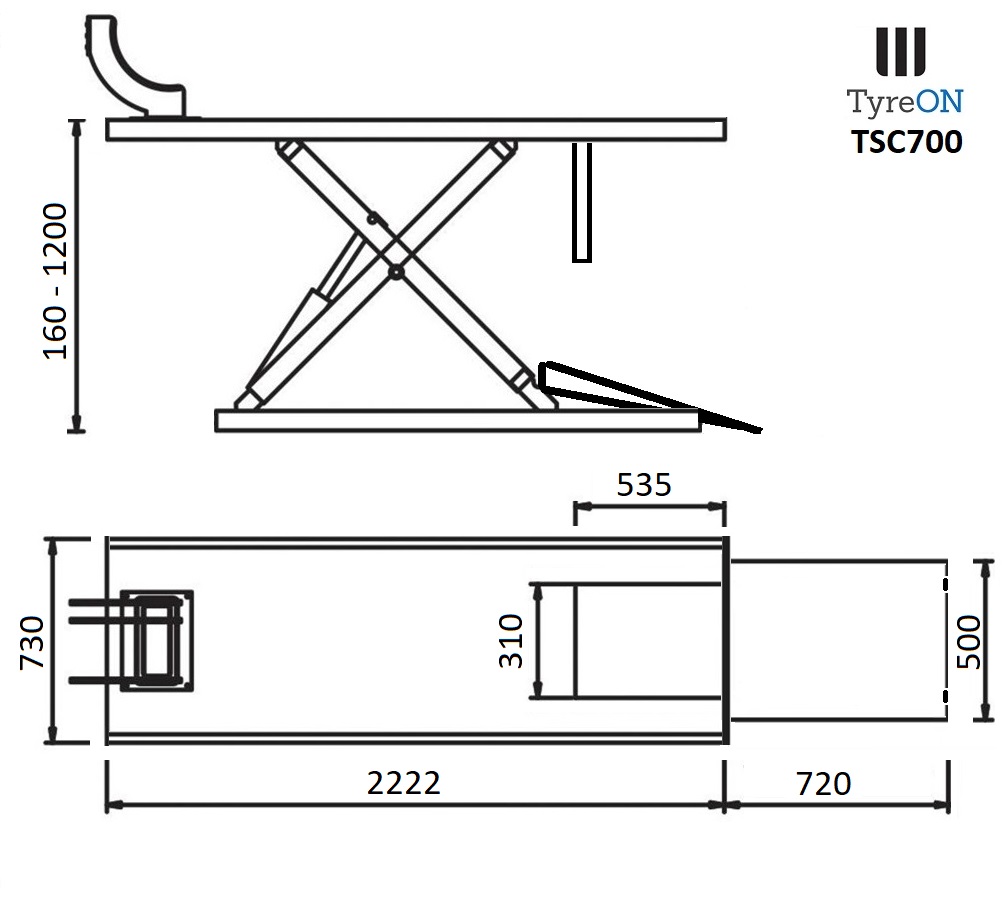

Length of the table 222 cm
Width of the table 73 cm
Size of the rear drop panel (L x W) 53,5 x 31 cm
Length of the ramp 72 cm
Duration lifting / lowering 20 / 10 minimum sec.
Voltage / Phase / Frequency 230 / 1 / 50 Volt / phase(s) / Hz
Power electric engine 0.75 kW
Circuit protection (fuse) 10 Ampère
Required air pressure (air compressor) 6 – 8 / not needed bar
Weight 275 kg
Professional version with a solid construction and a powerful electric motor
Handy mobile control unit with main switch and remote control for raising and lowering
Wired magnetic remote control that can be placed anywhere on the motorlift
Adjustable lowering speed
Equipped with a powerful hydraulic cylinder
The bridge works quietly and effortlessly, thanks this powerful hydraulic cylinder

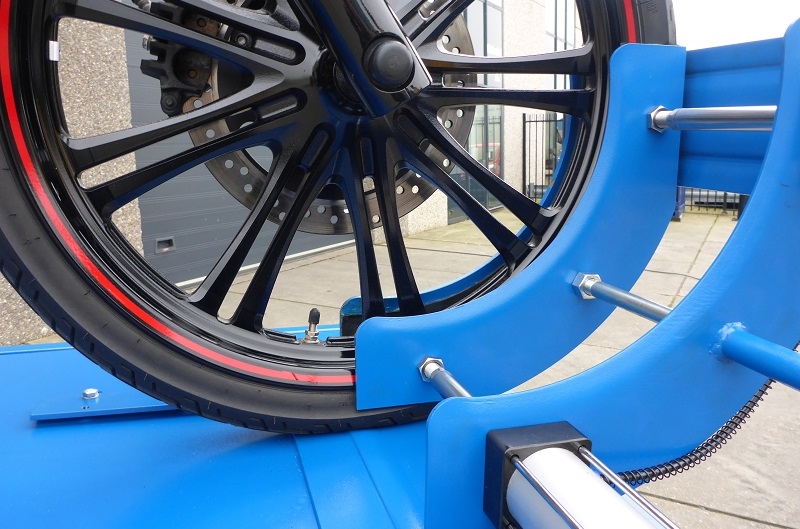

Supplied with a pneumatic front-wheel clamp
Anti-slip surface on the lift table

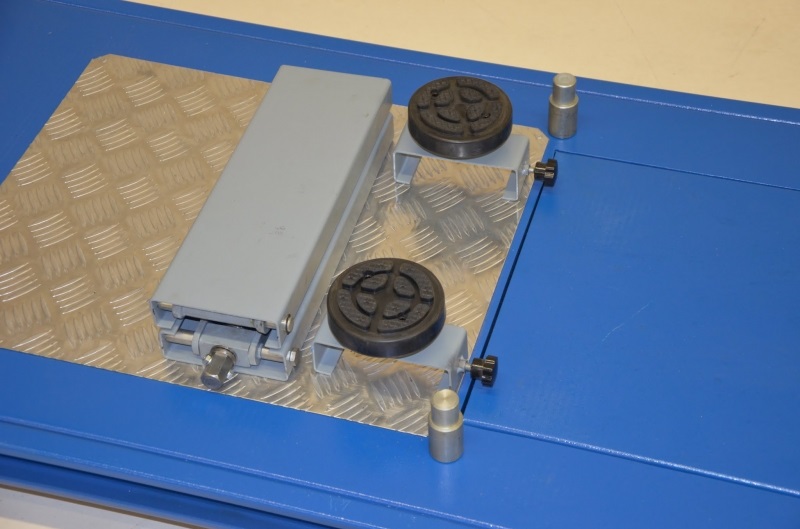

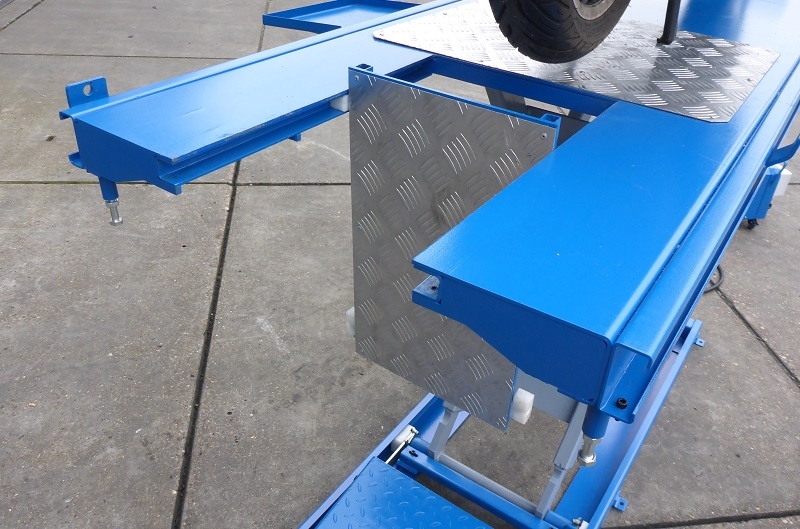

Lift table is equipped with a folding or removable panel for the disassembly of the rear wheel
Anti-slip surface on the ramp
The ramp easily slides beneath the table during lift
Long lifespan thanks to the applied techniques, quality materials and excellent finish
Treated with paint that is resistant to heavy usage and corrosive liquids (powder coating)
95% assembled, easy to install and operate, Plug-and-Go!
